[무선 통신] UWB LOS/NLOS Classification Using Deep Learning Method (2)

안녕하세요. WB LOS/NLOS Classification Using Deep Learning Method(1)에서 UWB CIR Dataset을 생성하였다면,

2편으로 논문에서 제시한 CNN_LSTM 네트워크를 약간 변형하여 구성하겠습니다.



coding-yoon.tistory.com/138

[무선 통신] UWB LOS/NLOS Classification Using Deep Learning Method (1)

1편을 보고 오시는 것을 추천드립니다. 이는 1편처럼 Dataset이 준비됐다는 가정 하에 진행됩니다.



Dataset

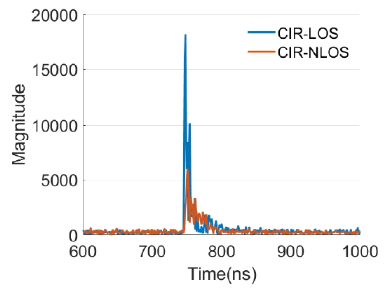

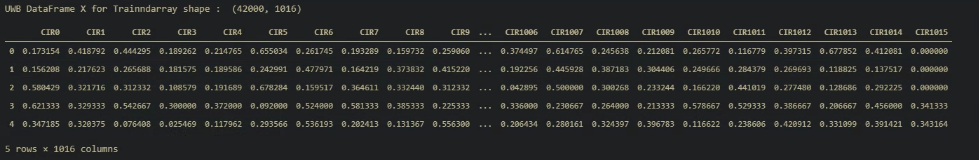

Columns : 1016 (Sampling CIR)

Label : 42000(LOS : 21000, NLOS : 21000)



먼저 위 논문은 CNN-LSTM 구조로 LOS/NLOS를 학습하는 모델입니다.

(epoch : 10, learning rate : 0.001, dropout : 0.5, Train Sample : 35000, Test Sample : 7000)

CNN에서 CIR Featur을 추출, Redundant information을 제거하고, LSTM을 이용하여 분류합니다.

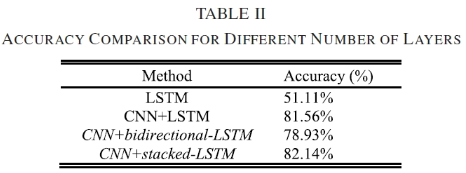

( CNN+stacked-LSTM Accuracy : 82.14% )



Model Structure

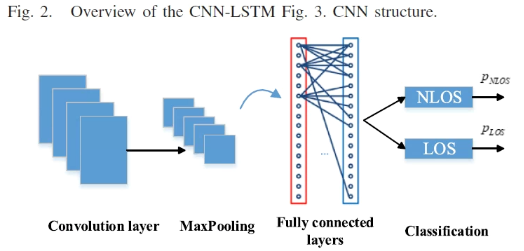

CNN Structure

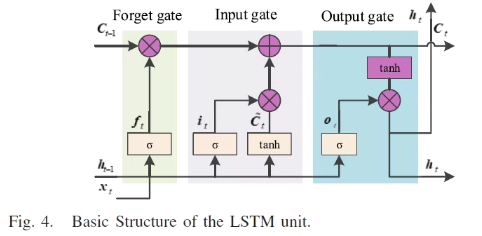

LSTM Structure

Result

Implemnet ( Dataset : df_uwb_data 준비 )



1. Import

import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import DataLoader, TensorDataset
from torch.utils.tensorboard import SummaryWriter

from sklearn.model_selection import train_test_split
from sklearn.metrics import accuracy_score, precision_score, recall_score, f1_score

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

import time
import random

import uwb_dataset

print("Pytorch Version :", torch.__version__)  # Pytorch Version : 1.7.1+cu110
writer = SummaryWriter('runs/UWB_CIR_Classfication')

%matplotlib inline



2. Hyper-Parameters

# random seed
random_seed = 42

num_epoch = 10
batch_size = 64
in_channels = 1
num_classes = 2
num_layers = 2
fully_connected = 128

lr = 0.001
weight_decay = 0.0

# Parameters
view_train_iter = 50
view_val_iter = 5
save_point = 0.90

3. Random Seed

def torch_random_seed(on_seed=False, random_seed=1):
    if on_seed:
        torch.manual_seed(random_seed)
        torch.backends.cudnn.deterministic = True
        torch.backends.cudnn.benchmark = False

        np.random.seed(random_seed)
        random.seed(random_seed)

torch_random_seed(on_seed=True, random_seed=random_seed)

4. Model Evaluation Function

def get_clf_eval(y_true, y_pred, average='weighted'):
    accuracy = accuracy_score(y_true, y_pred)
    precision = precision_score(y_true, y_pred, average=average)
    recall = recall_score(y_true, y_pred, average=average)
    f1 = f1_score(y_true, y_pred, average=average)

    return accuracy, precision, recall, f1

5. Split (Train, Validation, Test) X, label Data

# sklearn의 train_test_split은 stratify 파라미터를 통해 Label의 비율을 유지하면서 Split
x_train, x_test, y_train, y_test = train_test_split(df_uwb_data.values, df_uwb['NLOS'].values, test_size=0.1, random_state=42, stratify=df_uwb['NLOS'].values)
x_train, x_val, y_train, y_val = train_test_split(x_train, y_train, test_size=0.1, random_state=random_seed, stratify=y_train)

print("x_train shape :", x_train.shape, y_train.shape)
print("x_val shape :", x_val.shape, y_val.shape)
print("x_test shape :", x_test.shape, y_test.shape)

print("Train NLOS 0 count :", len(y_train[y_train==0]))
print("Train NLOS 1 count :", len(y_train[y_train==1]))
print("Validation NLOS 0 count :", len(y_val[y_val==0]))
print("Validation NLOS 1 count :", len(y_val[y_val==1]))
print("Test NLOS 0 count :", len(y_test[y_test==0]))
print("Test NLOS 0 count :", len(y_test[y_test==1]))

7. Dataset & DataLoader

def generating_loader(x_data, y_data, batch_size=batch_size, shuffle=True, drop_last=True):
    # preprocessing x_data
    x_data = np.expand_dims(x_data, axis=1)
    x_tensor = torch.tensor(x_data, dtype=torch.float32)
    # preprocessing y_data
    y_tensor = torch.tensor(y_data, dtype=torch.long).view(-1)

    return DataLoader(TensorDataset(x_tensor, y_tensor), batch_size=batch_size, shuffle=shuffle, drop_last=drop_last)

trainloader = generating_loader(x_train, y_train, batch_size=batch_size, shuffle=True, drop_last=True)
validationloader = generating_loader(x_val, y_val, batch_size=batch_size, shuffle=False, drop_last=True)
testloader = generating_loader(x_val, y_val, batch_size=batch_size, shuffle=False, drop_last=True)

for x, label in trainloader:
    print(x.shape, label.shape)
    break

8. Create Model

class CNN_LSTM(nn.Module):
    def __init__(self, in_channels, out_channels, batch_size, num_layers, fully_connected, device):
        super(CNN_LSTM, self).__init__()
        self.batch_size = batch_size
        self.conv1d_layer = nn.Sequential(
            nn.Conv1d(in_channels=in_channels, out_channels=10, kernel_size=4, stride=1, padding=0),
            nn.ReLU(),
            nn.Conv1d(in_channels=10, out_channels=20, kernel_size=5, stride=1, padding=0),
            nn.ReLU(),
            nn.MaxPool1d(kernel_size=2, stride=2),
        )
        self.lstm = nn.LSTM(input_size = 504,
                            hidden_size = 32,
                            num_layers = num_layers,
                            bias = False,
                            dropout = 0.5,
                            bidirectional = True,
                            batch_first=True)

        self.hidden_state, self.cell_state = self.init_hidden()

        self.bn2 = nn.BatchNorm1d(20)
        self.bn0 = nn.BatchNorm1d(64)
        self.bn1 = nn.BatchNorm1d(128)

        self.fc_layer = nn.Linear(64, 128)
        self.relu = nn.ReLU()
        self.fc_layer_class = nn.Linear(128, out_channels)


    def init_hidden(self):
        hidden_state = torch.zeros(num_layers*2, self.batch_size, 32).to(device)
        cell_state = torch.zeros(num_layers*2, self.batch_size, 32).to(device)

        return hidden_state, cell_state

    def forward(self, x):
        x = self.conv1d_layer(x)
        x, _ = self.lstm(x,(self.hidden_state, self.cell_state))
        x = x[:, -1 :].view(x.size(0), -1)
        x = self.bn0(x)
        x = self.fc_layer(x)
        x = self.bn1(x)
        x = self.relu(x)
        x = self.fc_layer_class(x)
        x = self.relu(x)

        return x

9. Loss Function, Optimizer

device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
model = CNN_LSTM(
    in_channels=in_channels,\
    device=device,\
    out_channels=num_classes,\
    batch_size=batch_size,\
    fully_connected=fully_connected,\
    num_layers=num_layers).to(device)
loss_function = nn.CrossEntropyLoss()
optimizer = optim.Adam(model.parameters(), lr=lr, weight_decay=weight_decay)  # optimizer

# tensorboard
images, labels = next(iter(trainloader))
writer.add_graph(model, images.to(device))

# lr_scheduler = optim.lr_scheduler.MultiStepLR(optimizer=optimizer, milestones=[int(num_epoch * 0.5), int(num_epoch * 0.75)], gamma=0.1, last_epoch=-1)

10. Train, Validation

start = time.time()

correct = 0
total = 0
train_acc = []
tmp_acc = 0
loss_arr = []

print("*Train Start!!*")
if torch.cuda.device_count() == True:
    print("epoch : {}, learing rate : {}, device : {}".format(num_epoch, lr, torch.cuda.get_device_name(0)))
    print("Model : {}".format(model._get_name()))
    print("Loss function : {}".format(loss_function._get_name()))
    print("Optimizer : {}".format(str(optimizer).replace("\n", " ").replace("     ", ", ")))
else:
    print("epoch : {}, learing rate : {}, device : {}".format(num_epoch, lr, device))
    print("Model : {}".format(model._get_name()))
    print("Loss function : {}".format(loss_function._get_name()))
    print("Optimizer : {}".format(str(optimizer).replace("\n", " ").replace("     ", ", ")))
print("*"*100)

# train
for epoch in range(num_epoch):
    epoch += 1
    for train_iter, (train_x, train_y_true) in enumerate(trainloader):
        model.train()  # Train mode
        model.zero_grad()  # model zero initialize
        optimizer.zero_grad()  # optimizer zero initialize


        train_x, train_y_true = train_x.to(device), train_y_true.to(device)  # device(gpu)
        train_y_pred = model.forward(train_x)  # forward
        loss = loss_function(train_y_pred, train_y_true)  # loss function
        loss.backward()  # backward
        optimizer.step()  # optimizer
        _, pred_index = torch.max(train_y_pred, 1)

        if train_iter % view_train_iter == 0:
            loss_arr.append(loss.item())
            total += train_y_true.size(0)  # y.size(0)
            correct += (pred_index == train_y_true).sum().float()  # correct
            tmp_acc = correct / total  # accuracy
            train_acc.append(tmp_acc)

            writer.add_scalar("Loss/train", loss, epoch)
            writer.add_scalar("Accuracy/train",tmp_acc, epoch)

            print("[Train] ({}, {}) Time={:.2f}[s], loss = {:.5f}, Accuracy = {:.4f}, lr={:.6f}".format(epoch, train_iter, time.time()-start, loss.item(), tmp_acc, optimizer.param_groups[0]['lr']))
    # lr_scheduler.step()
    # validation
    if epoch % view_val_iter == 0:
        val_acc_tmp, val_precision_tmp, val_recall_tmp, val_f1_tmp = [], [], [], []
        val_acc_result, val_precision_result, val_recall_result, val_f1_result = [], [], [], []
        val_time = time.time()
        for val_iter, (val_x, val_y_true) in enumerate(validationloader):
            model.eval()
            val_x, val_y_true = val_x.to(device), val_y_true.to(device)  # device(gpu)
            val_y_pred = model.forward(val_x)  # forward
            _, val_pred_index = torch.max(val_y_pred, 1)

            val_pred_index_cpu = val_pred_index.cpu().detach().numpy()
            val_y_true_cpu = val_y_true.cpu().detach().numpy()

            val_acc, val_precision, val_recall, val_f1 = get_clf_eval(val_y_true_cpu, val_pred_index_cpu)

            val_acc_tmp.append(val_acc), val_acc_result.append(val_acc)
            val_precision_tmp.append(val_precision), val_precision_result.append(val_precision)
            val_recall_tmp.append(val_recall), val_recall_result.append(val_recall)
            val_f1_tmp.append(val_f1), val_f1_result.append(val_f1)

        val_acc_mean = sum(val_acc_tmp, 0.0)/len(val_acc_tmp)
        val_precision_mean = sum(val_precision_tmp, 0.0)/len(val_precision_tmp)
        val_recall_mean = sum(val_recall_tmp, 0.0)/len(val_recall_tmp)
        val_f1_mean = sum(val_f1_tmp, 0.0)/len(val_f1_tmp)

        print("-"*100)
        print("|  Validation {:.2f}[s], Accuracy : {:.4f}, Precision : {:.4f}, Recall : {:.4f}, F1 Score : {:.4f}   |".format(
            time.time()-val_time, val_acc_mean, val_precision_mean, val_recall_mean, val_f1_mean))
        print("-"*100)
        if val_acc_mean >= save_point:
            epoch_str = str(epoch)
            lr_str = str(lr)
            batch_str= str(batch_size)
            acc_str= str((int(val_acc_mean*100)))
            model_name = "["+model._get_name()+"](epoch-"+epoch_str+")-"+"(init_lr-"+lr_str+")-"+"(batch-"+batch_str+")-"+"(acc-"+acc_str+").pt"
            save_path = os.path.join(path, dir_ ,model_name)
            parameters = {'epoch' : epoch, 'model_state_dict' : model.state_dict(), 'optimizer_state_dict' : optimizer.state_dict(), 'loss' : loss}
            torch.save(parameters, save_path)
            print('[INFO] Model Saved : '+ save_path)
writer.flush()
writer.close()

fig = plt.figure(figsize=[16, 8])
loss_plt = plt.subplot(2,1,1)
acc_plt = plt.subplot(2,1,2)

loss_plt.plot(loss_arr, color='red', marker="*")
loss_plt.set_title("Train - Loss", fontsize=15)
loss_plt.legend(['Train-Loss'])
loss_plt.grid(True, axis='y')

acc_plt.plot(train_acc, color='green', marker="*")
acc_plt.set_title("Train - Accuracy", fontsize=15)
acc_plt.legend(['Train-Accuracy'])
acc_plt.set_ylim((0.0, 1.05))
acc_plt.grid(True, axis='y')

plt.show()

11. Model Evaluation

test_start = time.time()

model.eval()
with torch.no_grad():
    test_acc_tmp, test_precision_tmp, test_recall_tmp, test_f1_tmp = [], [], [], []
    for test_iter, (test_x, test_y_true) in enumerate(testloader):
        test_x, test_y_true = test_x.to(device), test_y_true.to(device)
        test_y_pred = model.forward(test_x)  # forward

        _, test_pred_index = torch.max(test_y_pred, 1)

        test_pred_index_cpu = test_pred_index.cpu().detach().numpy()
        test_y_true_cpu = test_y_true.cpu().detach().numpy()

        test_acc, test_precision, test_recall, test_f1 = get_clf_eval(test_y_true_cpu, test_pred_index_cpu)

        test_acc_tmp.append(test_acc), test_precision_tmp.append(test_precision), test_recall_tmp.append(test_recall), test_f1_tmp.append(test_f1)

    test_acc_mean = sum(test_acc_tmp, 0.0)/len(test_acc_tmp)
    test_precision_mean = sum(test_precision_tmp, 0.0)/len(test_precision_tmp)
    test_recall_mean = sum(test_recall_tmp, 0.0)/len(test_recall_tmp)
    test_f1_mean = sum(test_f1_tmp, 0.0)/len(test_f1_tmp)
    print("[Evaluation] {:.2f}[s], Test Accuracy : {:.4f}, Precision : {:.4f}, Recall : {:.4f}, F1 Score : {:.4f}".format(
        time.time()-test_start, test_acc_mean, test_precision_mean, test_recall_mean, test_f1_mean))
    print("[Model Performance] Model Performance : {:.5f}".format(test_acc_mean))

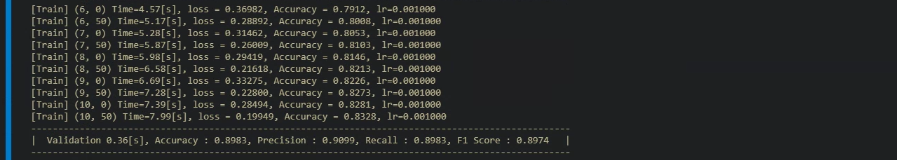

Model Performance : 89.83%

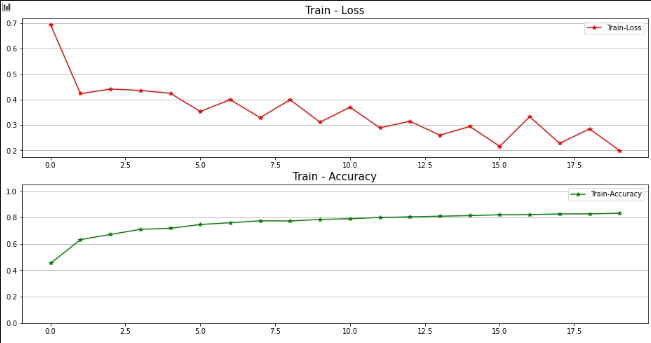

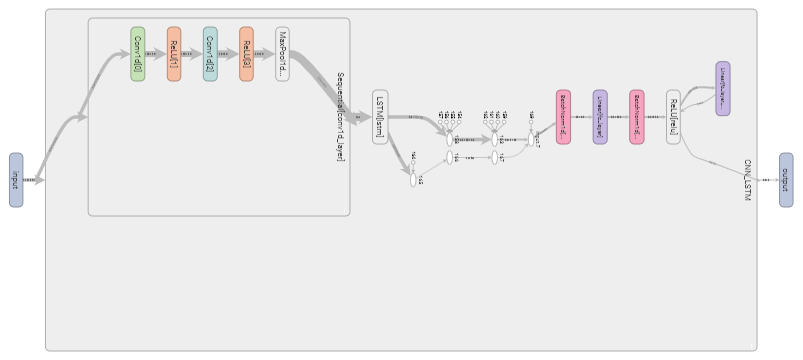

Tensorboard



모델에 제시된 파라미터는 그대로 사용하고, 약간 변형하여 모델을 구축하였는데 높은 Accuracy를 보여줍니다.



하지만 LOS/NLOS의 분류를 통해 UWB 성능을 올리는 방법을 제시하였지만, 논문의 Limitations으로 실제로 이 분류기를 통해 UWB 성능을 검증하지 못했습니다.



그리고 제가 생각하는 또 다른 문제는 오픈소스의 데이터라고 생각합니다.

이 데이터를 보았을 때, 굳이 딥러닝, 머신러닝을 사용할 필요가 있을까? 의문이 듭니다.

1차원적으로 생각하였을 때 Threshold를 10000에서 잘라버리면, NLOS를 쉽게 지워버릴 수 있습니다.



현 데이터는 허수(방향) 부분을 제외한 오직 크기의 성질만을 가지고 학습하였기 때문에, 과연 실제 환경 속에서 제대로 작동할지 의문이 듭니다.



UWB 특성상 Nanosecond로 시간을 재는 방식이기 때문에 데이터 추출하는 것이 굉장히 굉장히 어려움이 있어 구현하는 것은 어려움이 있습니다. 그렇기 때문에 5년 전 오픈소스이지만, 2020년에도 이를 이용해 논문을 작성했을 것이라고 생각합니다.
